About:

I run MythTV. I run Cacti. I decided to put them together and graph information about my MythTV installation.

Changelog:

• 2008-02-24 - Added transcoding graph. Thanks to a contributor.
• 2008-02-06 - Updated mythtv_parsexml.pl so it would see the commercial flagging job if the job queue length equals 1.
• 2007-11-27 - Updated mythtv_parsexml.pl to support a non-default port. Updated mythtv.xml to support mythtv_parsexml.pl changes and added vertical labels to the graph templates. If upgrading be sure to update the oldrecorded mysql count sql command.
• 2007-11-20 - Initial Release

Downloads:

• mythtv.xml -- The Templates
• mythtv_parsexml.pl -- The script to gather data from the MythTV XML server.

Dependancies:

• XML::Simple
• LWP::Simple

Instructions:

Download the mythtv xml parser for cacti. Install this file in your cacti scripts dir. On my debian system this was /usr/share/cacti/site/scripts/. Maybe try locate site/scripts to find the directory.

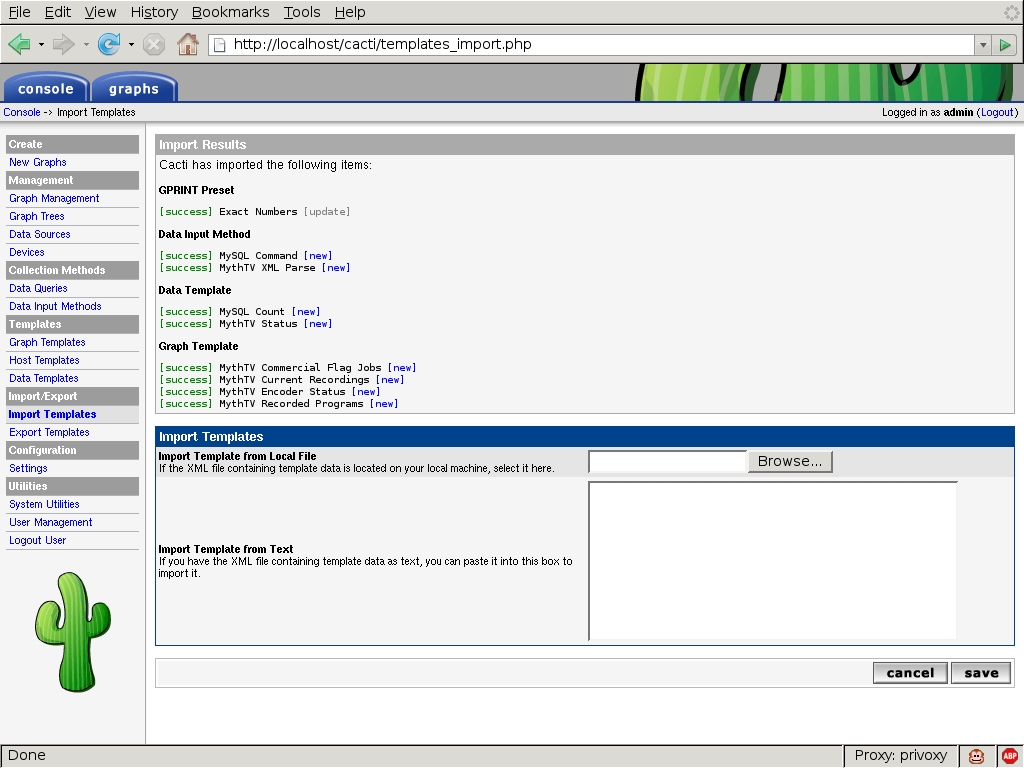

Import the template file using the Import Templates link on the left side. This should be the result:

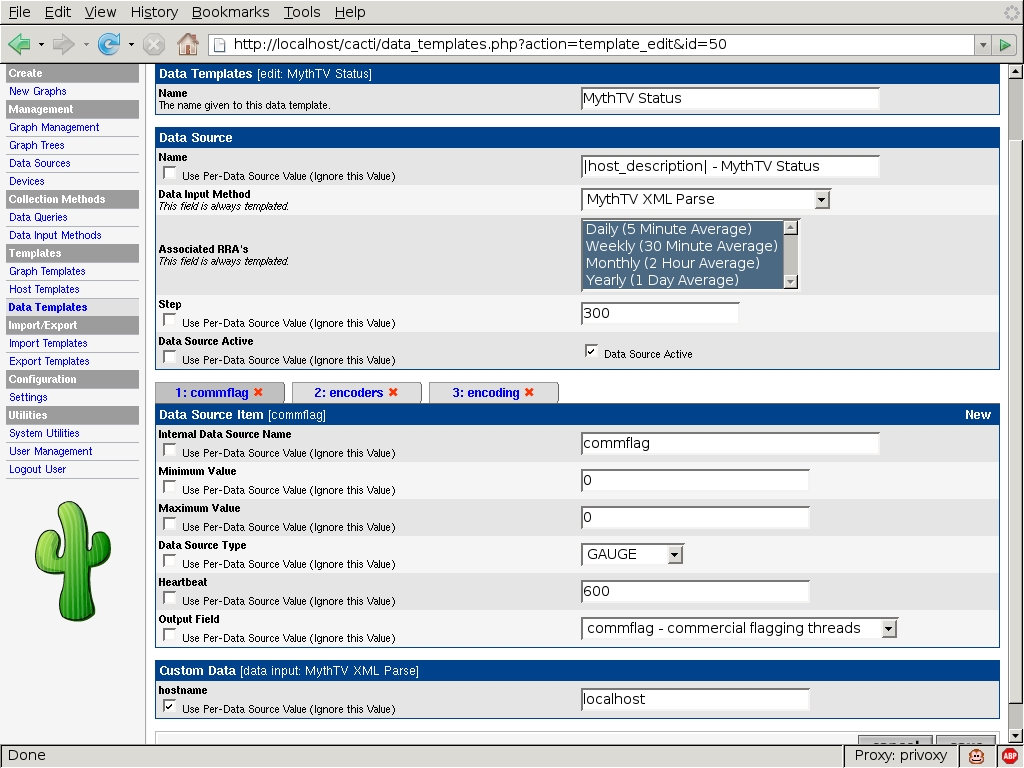

Go to Data Templates. Edit the MySQL Count template and add all of the Associated RRA's. Click Save. Do this for MythTV Status as well.

Create the required Data Sources. You need a MythTV Status and 2 MySQL Counts per MythTV server you are monitoring.

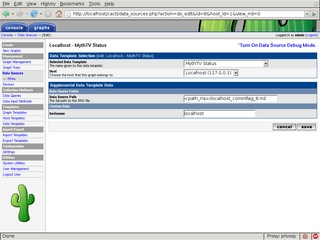

Here is the MythTV Status:

For the MySQL Count data sources you need a read only user that can do a select on the recorded and oldrecorded tables of your mythtv database. This can be accomplished with a pair of grants:

• grant select on mythconverg.recorded to 'cactireadonly'@'localhost' identified by 'somepassword';
• grant select on mythconverg.oldrecorded to 'cactireadonly'@'localhost' identified by 'somepassword';

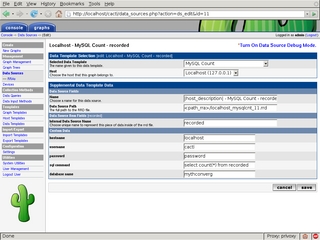

Create the recorded mysql count.

• Update the Name field to: |host_description| - MySQL Count - recorded
• Update the Internal Data Source Name field to: recorded
• Update the sql command to: select count(*) from recorded
• Update any other required Custom Data fields.

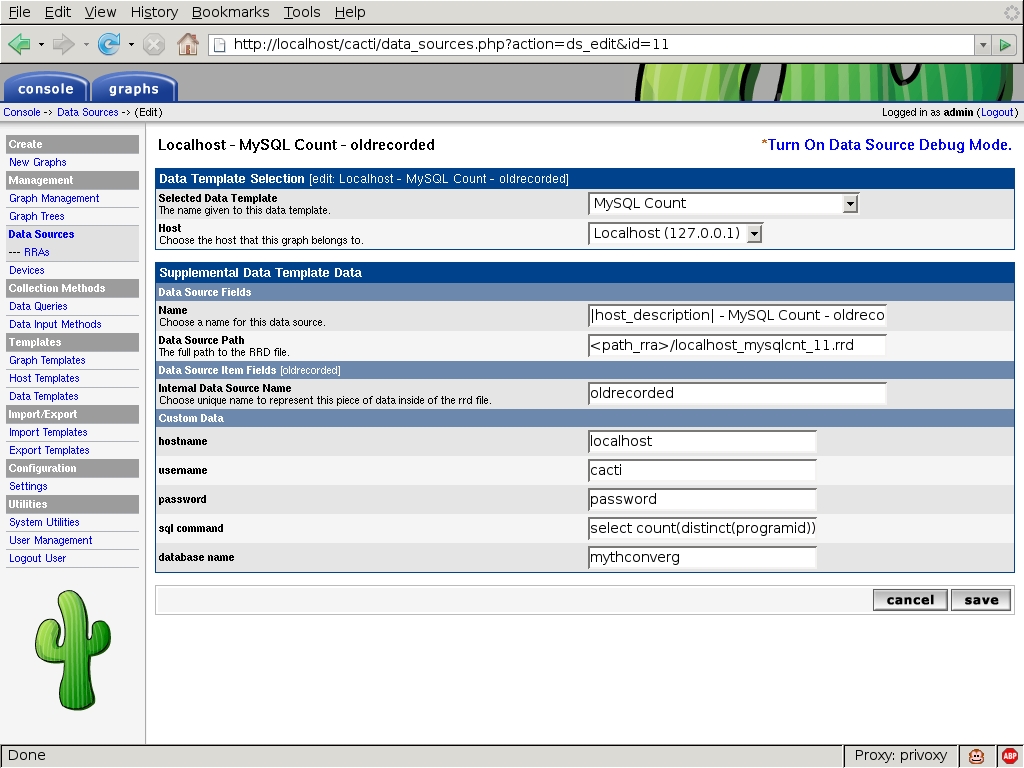

Create the oldrecorded mysql count.

• Update the Name field to: |host_description| - MySQL Count - oldrecorded
• Update the Internal Data Source Name to: oldrecorded
• Update the sql command to: select count(title) from oldrecorded where recstatus = -3
• Update any other required Custom Data fields.

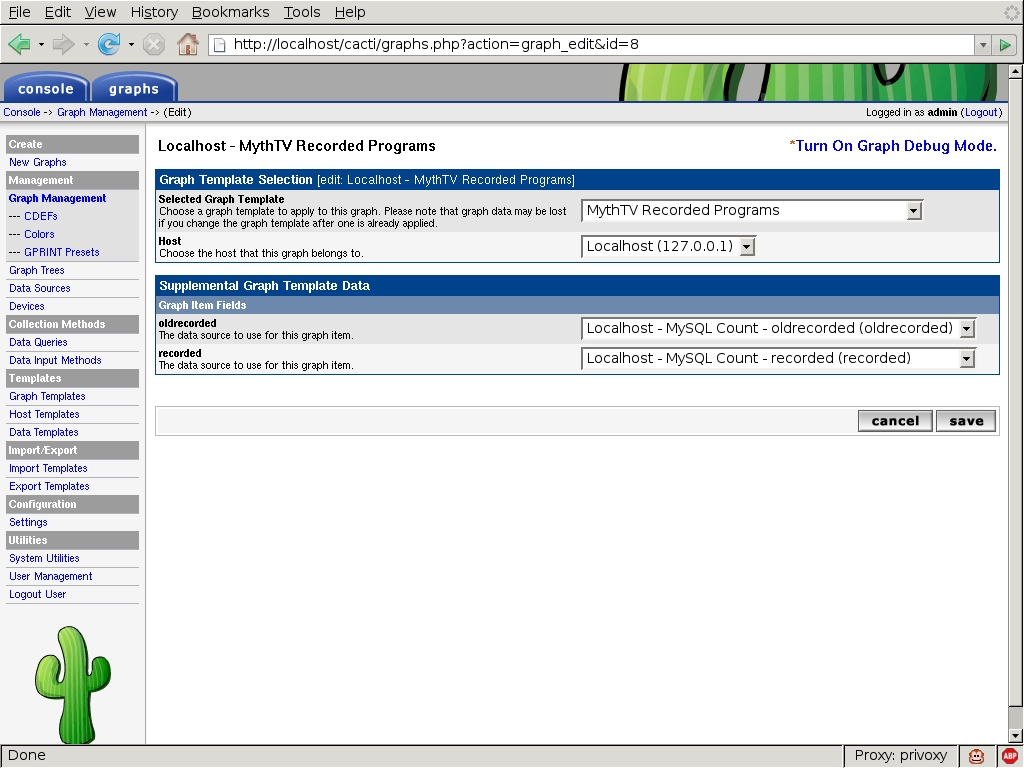

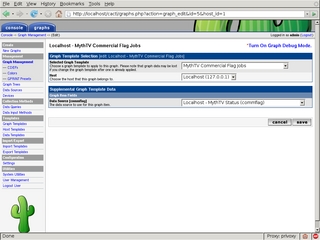

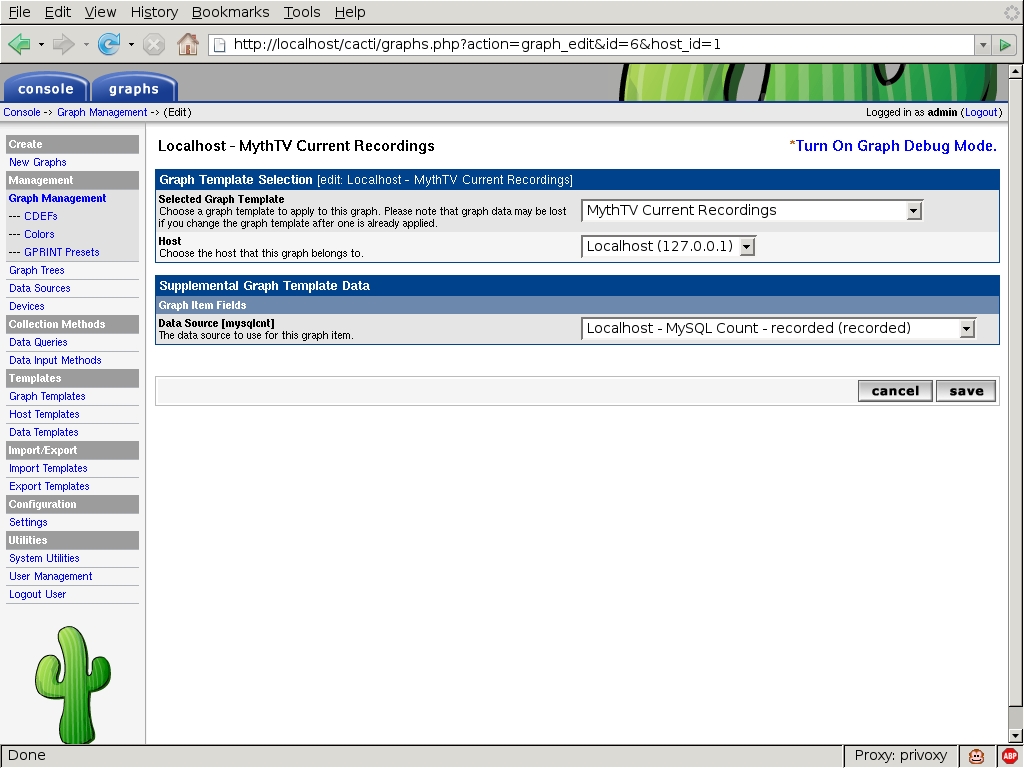

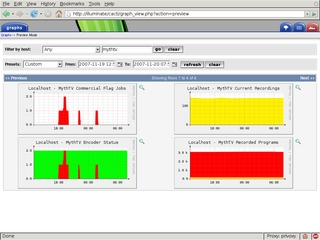

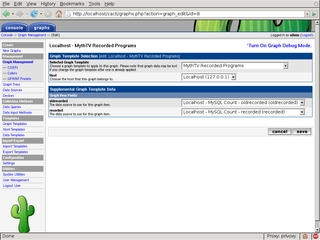

Create the graphs in the Graph Managment section.

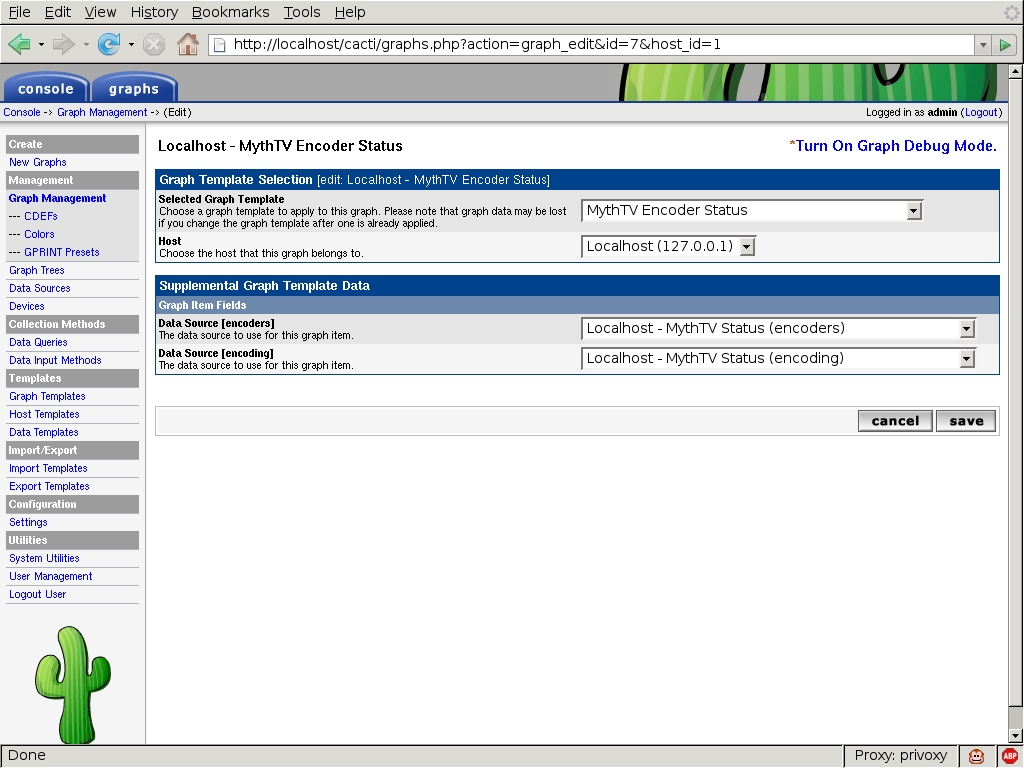

Also add a MythTV Transcoding Jobs graph using the MythTV Status (transcode) data source.

Enjoy:

Comments / Suggestions
